Comparativa medioambiental de muros atendiendo a su ciclo completo de vida

Acaban de publicarnos un artículo en la revista Journal of Cleaner Production (primer decil del JCR), de la editorial ELSEVIER, en la que analizamos una de las construcciones más habituales en la ingeniería civil, como son las estructuras de contención de tierras.

Se ha realizado para ello un análisis de ciclo de vida completo de cuatro tipos de muros: muros de hormigón armado, de hormigón en masa, de gaviones y de escollera. Además se ha realizado un estudio paramétrico para averiguar hasta qué altura de tierras es mejor una u otra tipología. Las conclusiones obtenidas no son evidentes a priori. Podéis verlas en el resumen que os paso a continuación.

Además, la editorial ELSEVIER nos permite la distribución gratuita del artículo hasta el 29 de junio de 2018. Por tanto, os paso el enlace para que os podáis descargar este artículo: https://authors.elsevier.com/a/1X15O3QCo9R1sI

Referencia:

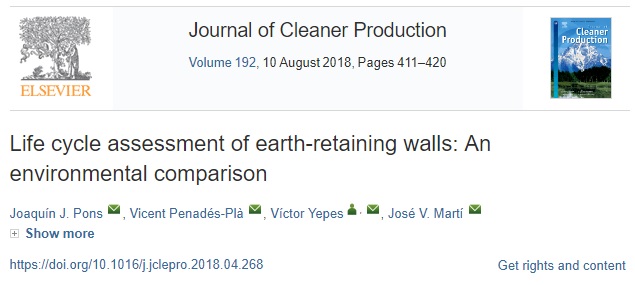

PONS, J.J.; PENADÉS-PLÀ, V.; YEPES, V.; MARTÍ, J.V. (2018). Life cycle assessment of earth-retaining walls: An environmental comparison. Journal of Cleaner Production, 192:411-420.  https://doi.org/10.1016/j.jclepro.2018.04.268

Abstract:

Earth-retaining walls are one of the most common structures in civil engineering, a discipline of the construction sector, which is known to produce one of the highest environmental impacts. Therefore, developing cleaner design and construction practices could contribute to a more sustainable future for our planet. To make a step towards this goal, this study comprises the life cycle assessment (LCA) of the four most common earth-retaining walls built between 1 to 6 m of height: cantilever walls, gravity walls, masonry walls and gabion walls to obtain the best solutions for the environment. To assess the environmental impacts caused throughout their whole life-cycle including the production, construction, use and end of life phases, we used the OpenLCA software, the ecoinvent 3.3 database and the ReCiPe (H) method. The associated uncertainties have been considered and the results are provided in both midpoint and endpoint approaches. Our findings show that gabion and masonry walls produce the lowest global impact. On the one hand, gabion walls cause less damage to human health but on the other hand, masonry walls cause less damage to the ecosystems. Furthermore, gravity walls produce similar impacts to gabion and masonry walls between 1 and 3 m of height as well as fewer impacts than cantilever walls for a height of 4 m. In conclusion, gabion and masonry walls are preferable to concrete walls for heights between 1 and 6 m and cantilever walls should be used over gravity walls for greater heights than 4.5 m.

Keywords:

Life cycle assessment; Sustainability; Earth-retaining wall; ReCiPe

Highlights:

  • Four earth-retaining walls are compared to obtain the best environmental solution.
  • The OpenLCA software, the Ecoinvent 3.3 database and the ReCiPe (H) method are used.
  • Gabion walls cause less damage to human health than masonry walls.
  • Masonry walls cause less damage to the ecosystems than gabion walls.
  • Mass concrete walls are cleaner than reinforced ones until 4.5 m of height.





Análisis de ciclo de vida de puentes óptimos de vigas artesa

Acaban de publicarnos un artículo en la revista internacional Sustainability sobre análisis de ciclo de vida de puentes óptimos de vigas. La evaluación del impacto ambiental se realiza a lo largo del ciclo de vida de puentes de hormigón postesado de vigas artesa que previamente han sido optimizados mediante una metaheurística de algoritmos meméticos. Os dejo a continuación la referencia de la revista. Además os podéis descargar y distribuir el artículo sin problema, pues está editado en abierto:

http://www.mdpi.com/2071-1050/10/3/685/html

Referencia:

PENADÉS-PLÀ, V.; GARCÍA-SEGURA, T.; MARTÍ, J.V.; YEPES, V. (2018). An optimization-LCA of a prestressed concrete precast bridge. Sustainability, 10(3):685. doi:10.3390/su10030685

Descargar (PDF, 2.69MB)

Análisis del ciclo de vida: comparación entre dos puentes postesados óptimos de sección en cajón

Acaban de publicarnos un artículo en la revista del JCR (Q2) Sustainability que compara dos puentes postesados óptimos de sección en cajón atendiendo a su ciclo de vida. Creemos que la metodología empleada puede ser de interés para casos de estructuras de hormigón similares a las presentadas. El artículo forma parte del proyecto de investigación BRIDLIFE “Puentes pretensados de alta eficiencia social y medioambiental bajo presupuestos restrictivos“.

Os paso a continuación el resumen y el artículo propiamente dicho, pues está publicado en abierto.





Abstract:

The goal of sustainability involves a consensus among economic, environmental and social factors. Due to climate change, environmental concerns have increased in society. The construction sector is among the most active high environmental impact sectors. This paper proposes new features to consider a more detailed life-cycle assessment (LCA) of reinforced or pre-stressed concrete structures. Besides, this study carries out a comparison between two optimal post-tensioned concrete box-girder road bridges with different maintenance scenarios. ReCiPe method is used to carry out the life-cycle assessment. The midpoint approach shows a complete environmental profile with 18 impact categories. In practice, all the impact categories make their highest contribution in the manufacturing and use and maintenance stages. Afterwards, these two stages are analyzed to identify the process which makes the greatest contribution. In addition, the contribution of CO2fixation is taken into account, reducing the environmental impact in the use and maintenance and end of life stages. The endpoint approach shows more interpretable results, enabling an easier comparison between different stages and solutions. The results show the importance of considering the whole life-cycle, since a better design reduces the global environmental impact despite a higher environmental impact in the manufacturing stage.

Keywords:

sustainabilityenvironmental impactlife-cycle assessmentconstruction LCAbridge LCAReCiPe;sustainable construction

Reference:

PENADÉS-PLÀ, V.; MARTÍ, J.V.; GARCÍA-SEGURA, T.;  YEPES, V. (2017). Life-cycle assessment: A comparison between two optimal post-tensioned concrete box-girder road bridges. Sustainability, 9(10):1864. doi:10.3390/su9101864 (link)

Descargar (PDF, 802KB)
